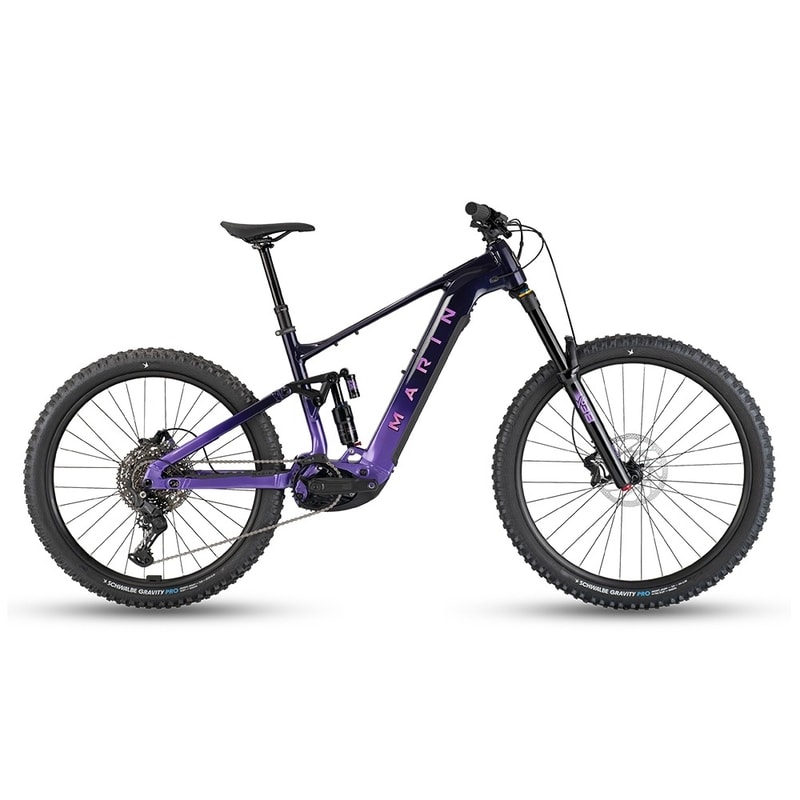

The Alpine Trail E Bosch is our biggest, baddest beast of a bike family, with 170mm of suspension up front, 160mm of MultiTrac 2 travel at the rear and a Bosch CX drive unit at its core, the Alpine Trail E is constructed for riders who challenge themselves with the steepest, most technical terrain, and maximum range for big days in the mountains.
Size Small
Color Purple Fade
Wheel Size 29"
Display Bosch Kiox 400 Top Tube Display
Battery PT800 Horizontal
Frame All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

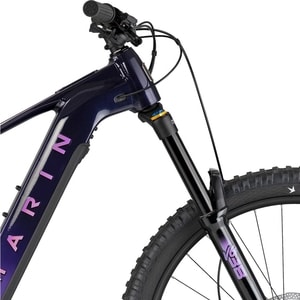

Front Suspension X-Fusion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle

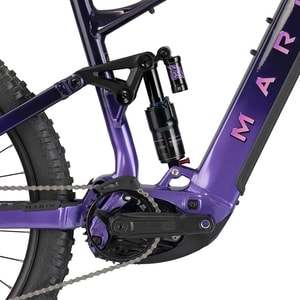

Rear Suspension X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune
Rims New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

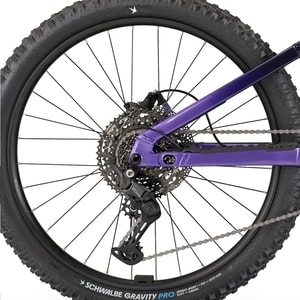

Hub, Rear Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body
Hub, Front Shimano HF-MT500B, 110x15mm, Centerlock
Tires Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5" Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
Derailleur, Rear Shimano CUES RD-U6000 GS, 10-Speed
Shift Lever Shimano CUES SL-U6000-10R, 10-Speed
Crankset Marin Forged eMTB Cranks, 150mm
Chain Shimano LG500
Brake, Front TRP DHR EVO Comp, 200mm Rotors
Brake, Rear TRP DHR EVO Comp, 200mm Rotors
Brake LeversTRP DHR EVO Comp HandlebarMarin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem Marin 3D Forged Alloy, 35mm
Grip Marin Grizzly Lock-On
Headset FSA Custom Headset, Adjustable HTA Design
Seatpost TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm
Saddle Marin Short Nose
