MARIN ALPINE E2
Rp 70.000.000
color
SIZE

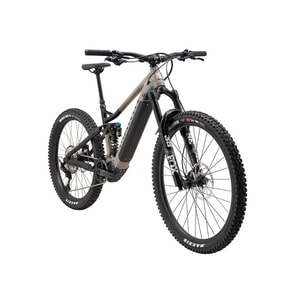

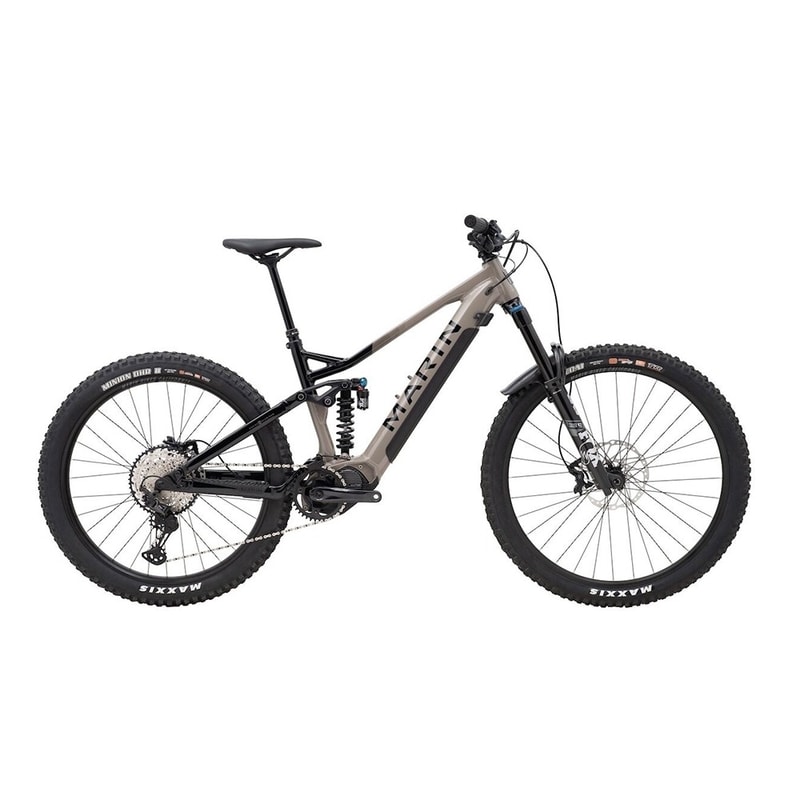

The Marin Alpine Trail E2 is our top-end Alpine Trail, ready to tame the roughest and toughest of trails. For the best of the bunch, we’ve packed in the big-dog Shimano STEPs EP801 system and a long-lasting 630Wh battery, Fox 38/Float DHX2 Performance Elite suspension and a blend of Shimano XT and SLX 12-speed, including powerful 4-piston brakes.
SPECIFICATION
- FRAME Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
- FORK Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
- SHOCK Fox DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb
- RIMS Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
- HUB REAR Shimano FH-TC500MSB, 148x12mm, Disc, MicroSpline Freehub Body
- HUB FRONT Shimano FH-TC500, 110x15mm, Centerlock, 32H
- SPOKES 14g Black Stainless Steel
- TIRES Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
- DERAILLEUR REAR Shimano XT 12-Speed, SGS
- SHIFT LEVER Shimano SLX 12-Speed, I-Spec EV
- CRANKSET Shimano XT M8150, 160mm Length, 38t Chainring
- MOTOR Shimano Steps EP801 Drive Unit, 250W, 85Nm
- CHAIN KMC E12S, eMTB-Specific Chain
- CASSETTE SunRace, 12-Speed, Microspline, 10-51T
- BRAKES FRONT Shimano SLX 4-piston Hydraulic Disc, 203mm rotor
- BRAKES REAR Shimano SLX 4-piston Hydraulic Disc, 203mm rotor w/ speed sensor
- BRAKE LEVERS Shimano SLX, I-Spec EV
- HANDLEBAR Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
- STEM Marin CNC, 35mm Length, 35mm Bar Bore
- GRIPS Marin Grizzly Lock On
- HEADSET FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
- SEATPOST X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
- SADDLE Marin eMTB Saddle
- PEDALS Marin MTB Plastic
- BATTERY BT-EN806 Internal 630Wh
- DISPLAY Shimano SC-E600
- SWITCH SW-E7000 Left Hand Switch for Assist Mode Change
- EXTRAS Shimano Battery Charger EC-E6002, 2A; Shimano CS-EN800 Chainguide, CushCore, 29" Pro Front, Plus Rear, with CushCore Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap
- Range, Charging Time 19-50 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)
