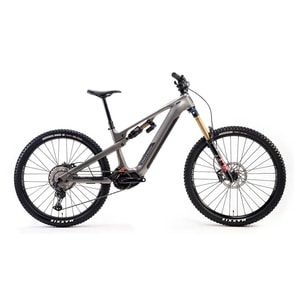

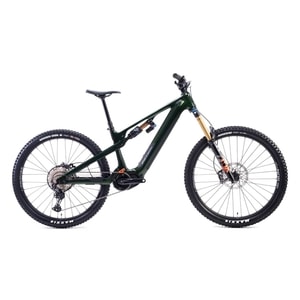

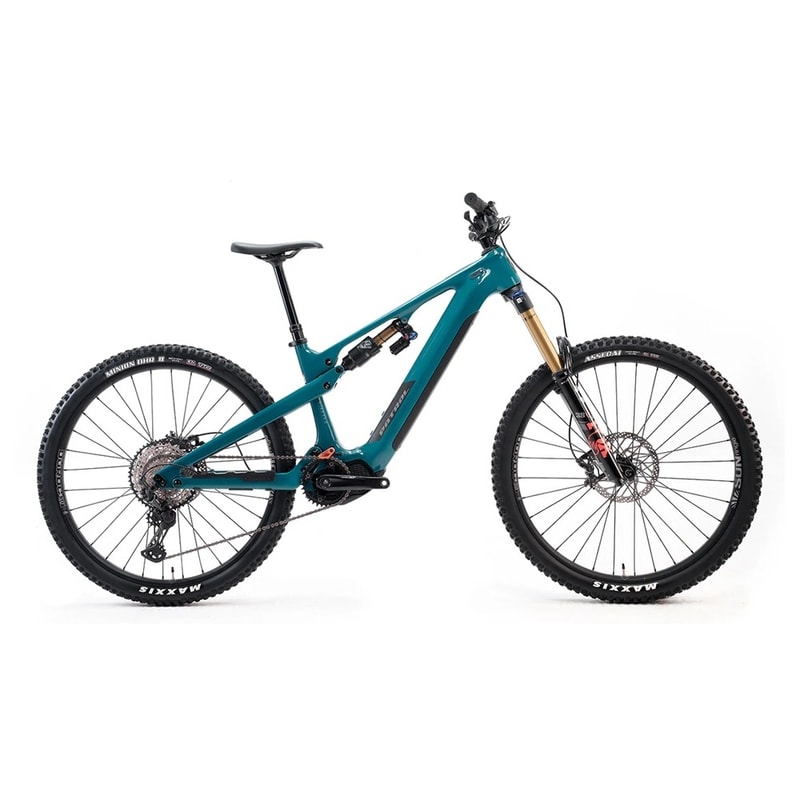

Patrol E-Seven S-Spec Mountain Bike
The patrol e-seven emtb utilises 100% carbon fibre frame construction, new suspension kinematics, mullet-ready flip chip, and the latest shimano ep801 motor system. With 180mm of suspension travel and the front and 170mm at the rear the patrol e-seven is unstoppable.
100% carbon fibre construction is a first for our emtb range. The patrol e-seven’s durable chassis uses carbon fibre for both front and rear triangles and our unique motor brace ensures reliability.
The patrol e-seven is the first patrol to come with a mullet flip-chip as standard. This simple option allows you to swap wheel sizes easily without upsetting geometry or handling.
Neatly hidden into the top tube of the e-seven is a spare rear mech hanger so you never have to worry about being stranded in the middle of an adventure.
170mm travel, new kinematic
Our engineers have employed our novel ‘hidden link’ suspension system, utilizing a completely revamped suspension kinematic. This might be the most playful 170mm travel emtb we’ve ever made!
The shimano ep801 drive system delivers the 85nm of torque and shimano’s unwavering reliability with new smart functions and an updated handlebar control unit.
FRAME // PATROL carbon electric freeride, 12×157 mm, 170mm travel
FORK // FOX 38 E Factory, 180mm travel
SHOCK // FOX Float X2 Factory, 230×65
DROPPER // X-FUSION Manic, 34.9mm, 150mm
MOTOR // SHIMANO Steps EP801
BATTERY // SHIMANO BT-EN806, 630Wh
REAR MECH // SHIMANO Deore XT M8100, 12s
SHIFTER // SHIMANO Deore XT M8100-R
CHAINSET // SHIMANO FC-M8150, SM-CRE80-12-SB, 34t
CASSETTE // SHIMANO SLX M7100, 12s, 10-51t
BRAKES // SHIMANO Deore XT BR-M8120, 4-piston F/R
WHEELS // SUNringlé Düroc SD37 rims with SHIMANO Deore XT hubs
TYRES // Maxxis Assegai 29×2.50 front, Maxxis Minion DHRII, 29×2.4 rear
