PATROL E-FIVE
Rp 94.000.000
Rp 60.450.000
Color
Size
Product

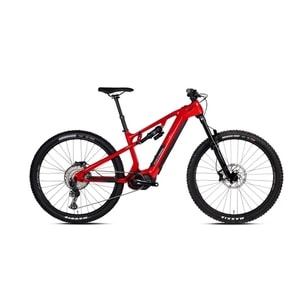

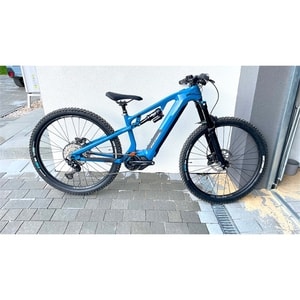

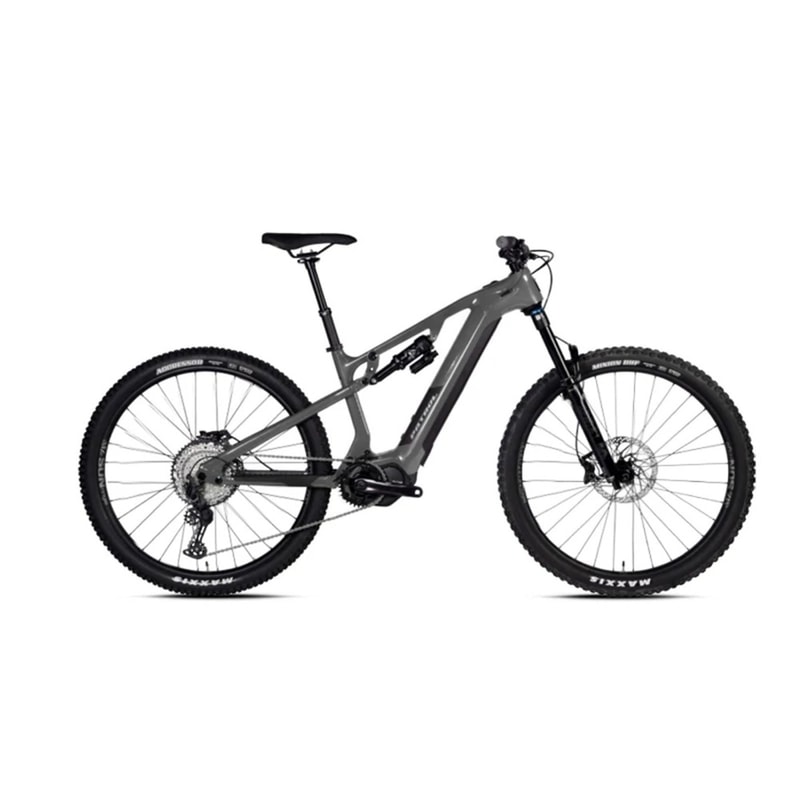

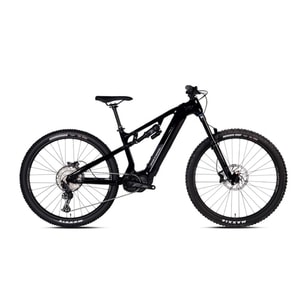

Patrol E-Five E-Bike
Model Year
2022
Riding Type
Trail
Enduro / All-Mountain
Rider
Unisex
Wheel Size
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)

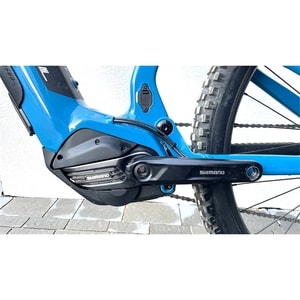

Motor
Shimano STEPS EP8, 85Nm max torque
Battery
Shimano E8036, integrated
Battery Capacity
630 Wh
Modes
Boost, Trail, Eco, Walk Assist
Max Speed with Assist
15.6 mph (25 km/h)
Frame Material
Carbon Fiber
Frame Material Details
Carbon front triangle, alloy rear triangle, molded chainstay protection
Rear Travel
130mm
Rear Shock
FOX FLOAT X Performance

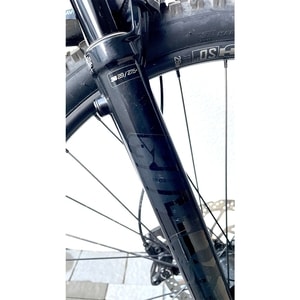

Fork
FOX FLOAT 36 Performance
Fork Travel
150mm
Head Tube Diameter
1.8" bottom
Brakes
Shimano MT420, 4-piston
Brake Levers
Shimano MT420
Drivetrain
1x
Shifters
Shimano SLX M7100, 12-speed
Front Derailleur
None

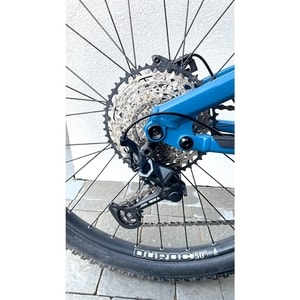

Rear Derailleur
Shimano SLX M7100, 12-speed
Chainguide
Upper slider
Cranks
Shimano EM600
Chainrings
Shimano CRE80, 34 tooth
Chain
12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Rims
SUNringlé Düroc SD37
Hubs
Shimano SLX, 15x110mm Boost front, 12x157mm SuperBoost rear with MICRO SPLINE driver
Tires
VEE Tire Co. Attack, HPL, 29" x 2.5"
Seatpost
KS KSP-900-i dropper, 125mm drop
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12x157mm SuperBoost
Bottle Cage Mounts
One inside front triangle
Miscellaneous
• Horst Link rear suspension design
• Internal cable routing
• Power settings customizable through Shimano's E-Tube app
