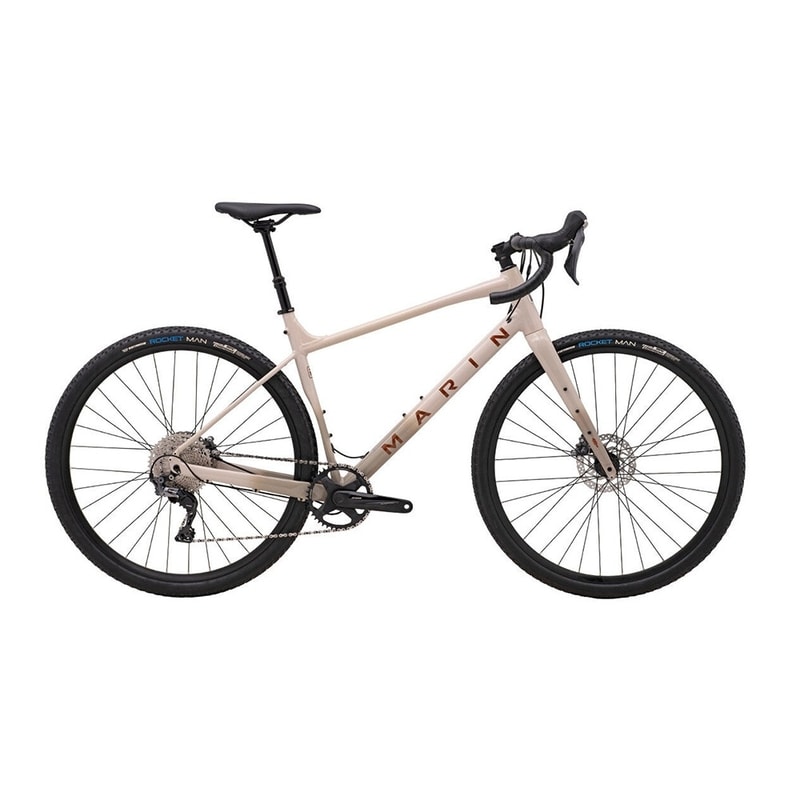

MARIN GESTALT XR 700C
Rp 30.000.000
COLOR
SIZE
ADVENTURE ON AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
GRAVEL RIDING
The Gestalt X is our hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do. Break off the fire road, down the singletrack and charge further and faster than ever before. All while keeping the versatility, challenge and fun of a bike with drop handlebars.
The Gestalt X is built with a longer-than-the-usual wheelbase, slack-like-your-mountain-bike head angle, low-slung frame, wide bars, short stem, big and chunky tires with room for up to 50mm on 700c or 54mm with a 650b wheelset.
The Gestalt XR takes gravel to the next level. XR brings our MTB-inspired, Series 3 aluminum Gestalt X frame and adds a gravel-specific Shimano GRX 11-speed drivetrain, GRX hydraulic disc brakes, a TranzX dropper post, cushy and grippy 44mm wide Vee Tire Rubber and heaps of our own bespoke Marin components
Key upgrades over the Gestalt X10:
- Shimano GRX 11-speed drivetrain
- Shimano GRX BRX400 hydraulic disc brakes
- TranzX dropper post
SPECIFICATION
- Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
- Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Rims Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
- Hub, Rear Forged Aluminum Alloy, 142x12mm, Disc, 32H
- Hub, Front Forged Aluminum Alloy, 100x12mm, Disc, 32H
- Spoke, Nipples 14g Black Stainless Steel
- Tires Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
- Derailleur, Rear Shimano GRX RDX812, Shadow w/ Clutch
- Derailleur, Front -
- Shift Lever Shimano GRX GX810, 1x11-Speed, Integrated Dropper Lever
- Crankset FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle
- Bottom Bracket FSA MegaExo Threaded
- Chain KMC X11
- Cassette Shimano CS-M5100 11-Speed, 11-42T
- Brake, Front Shimano GRX Hydraulic Disc, 160mm Rotor
- Brake, Rear Shimano GRX Hydraulic Disc, 160mm Rotor
- Brake Levers Shimano GRX Hydraulic w/ Shifter and Integrated Dropper Lever
- Handlebar Marin Butted Alloy, Compact 16º Flared Drop
- Stem Marin 3D Forged Alloy
- Grips Marin Shock Absorbing Perforated Tape
- Headset FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
- Seatpost TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm
- Saddle Marin Beyond Road Concept Elite
- Pedals -
- Extras Bolt-On Thru-Axles F and R
